PICOLAZE™ Active Picolaselaser System

High-Performance Aesthetic Platform for Tattoos, Pigmentation, Melasma & Skin Rejuvenation

EPILATE 2400W Diode Laser System
Picolaze System Angle 1
Picolaze Handpiece Angle
Picolaze Handpiece Angle
International Compliance & Standards
NMPA Logo NMPA
TÜV Rheinland Logo TÜV Rheinland
ISO 13485 Logo ISO 13485
RoHS Logo RoHS
Super Picosecond Technology

PICOLAZE™ Active Picolaselaser System

3000W Power 500ps - 600ps Pulse Flat-top Mode

Instead of building up heat, Super Picosecond delivers energy so rapidly (in trillionths of a second) that tiny particles of pigment and tattoo ink vibrate and shatter without burning surrounding tissue. Less heat means less tissue damage and faster recovery.

System Power 3000W Output
Output Energy 1300mj @ 1064nm
Request Wholesale Pricing View Full Specifications
Technical Specifications
Power 3000W
Wavelength 1064nm, 532nm (585nm, 650nm optional)
Pulse Duration 600ps @ 1064nm, 500ps @ 532nm
Output Energy 1300mj @ 1064nm, 550mj @ 532nm
Treatment Modes SP (Single Pulse), PTP (Double Pulse), Genesis / LP (Long Pulse)
Spot Size 2mm - 10mm
Frequency 1Hz - 10Hz
Screen 10.4" Colour Touch Display
Cooling System Water + Wind Cooling System
Voltage 220V/50Hz, 110V/60Hz
Package Weight 140 kg & 6.6 kg
Proven Clinical Results

Before & After Case Gallery

Browse real clinical before/after results achieved using PICOLAZE® workstation.

Unique System Features

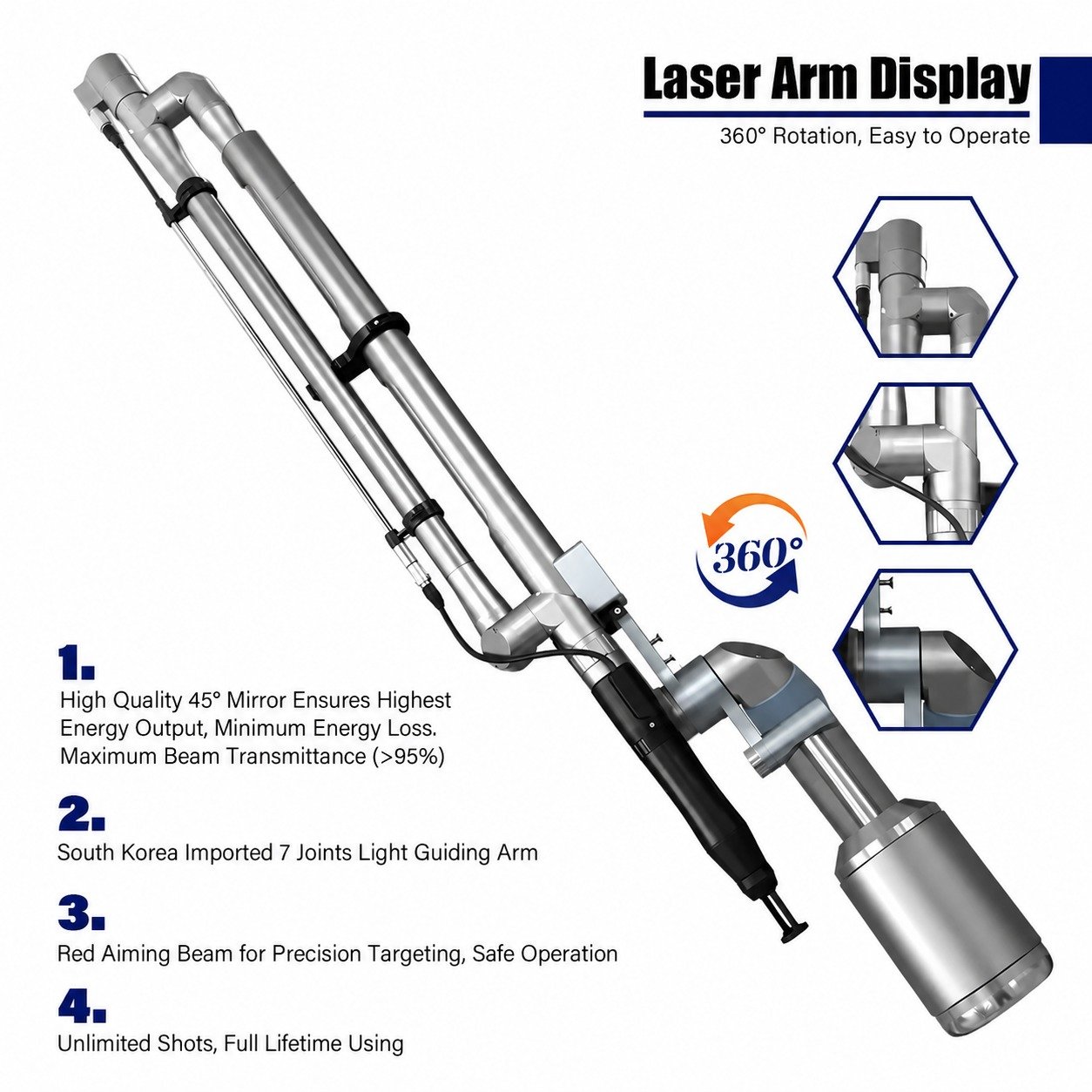

  • 7-Joint Articulated Arm: Imported from South Korea with automatic recognition technology and transmission efficiency up to 85%.
  • Adjustable Spot Size: Precision zoom handpiece from 2mm to 10mm.
  • Multiple Operating Modes: Single pulse (SP), double pulse (PTP), and Long Pulse (LP) options.
  • Solid Laser Seed Source + MOPA: Advanced amplification technology for precise beam control.
  • USA Imported Components: High-grade laser lamps and optical lenses (Real pulse duration 500PS verified by oscilloscope).
  • Flat-Top Mode: Homogeneous distribution of energy delivers energy efficiently to the treatment area, maximizing clinical effect while minimizing damage to surrounding tissue.

Treatment Modes

SP (Single Pulse)

A single pulse with energy and adjustable spot for treatments where stronger energy is needed. Remodeled for complete removal of all tattoo types (eyebrow, eyeline, lip liner, eyelid tattoos, etc.).

PTP (Double Pulse)

Dual pulse delivery system that is less aggressive than single pulse, offering fewer side effects with excellent clinical results. Ideal for freckles, age pigments, superficial/deeper speckles, birthmarks, and vascular skin lesions (hemangioma, red blood streak).

Genesis (LP - Long Pulse)

300ms pulse designed specifically for anti-wrinkle treatment, skin rejuvenation, tightening, curing acne scars, and minimizing enlarged pores.

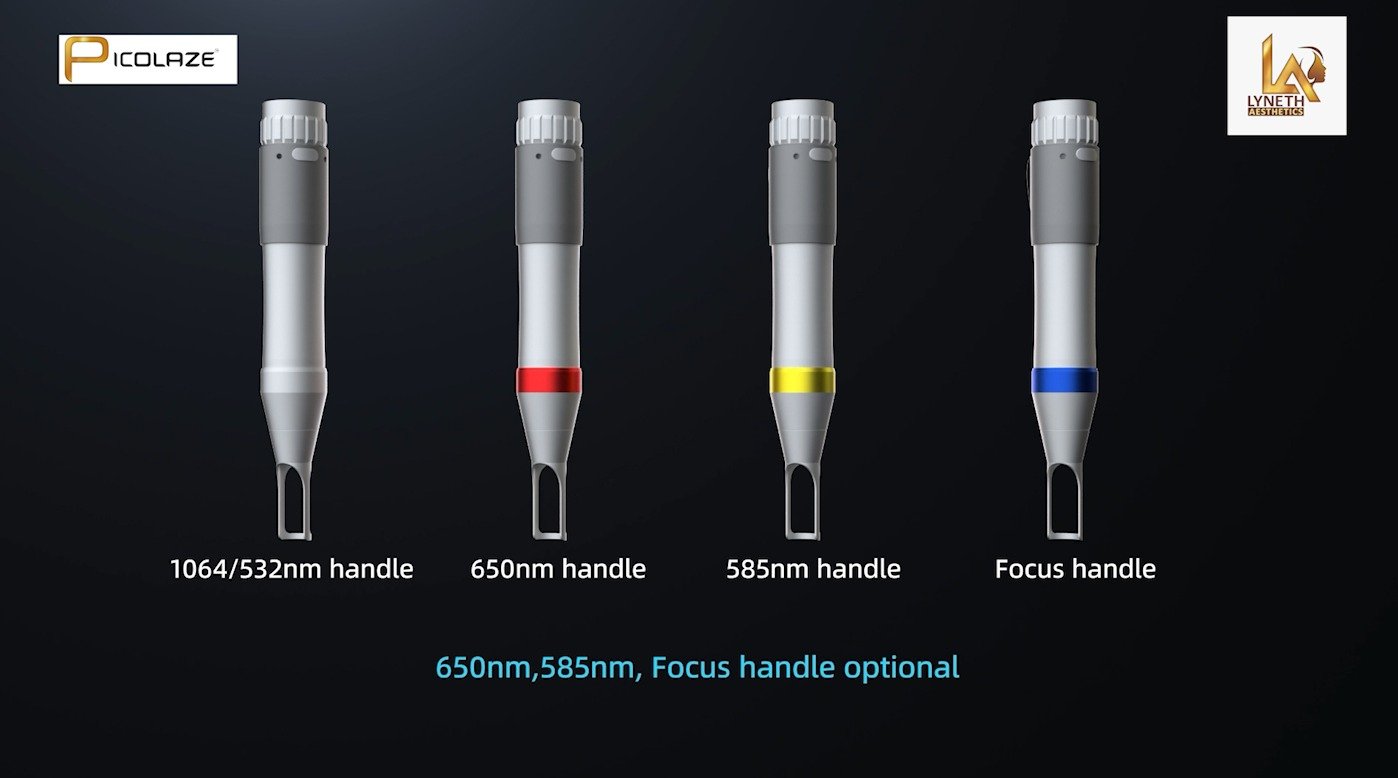

Handpiece Wavelength Options

1064nm / 532nm
Standard

Deep tattoos, dark pigmentations, epidermic spots.

585nm
Optional

Targeted vascular lesions and red pigmentations.

650nm
Optional

Green tattoo ink & stubborn colored pigmentations.

Fractional
Optional

Skin resurfacing, pore contraction & scar therapy.

Clinical Applications Summary

Tattoo Removal Tattoos of all colors, eyeline, lipline, eyelid tattoos, etc.
Pigment & Melasma Epidermal and dermal pigments including sun spots, coffee spots (café au lait), chloasma, freckles, etc.
Skin Rejuvenation Skin whitening, brightening, and wrinkle reduction.
Complex Skin Conditions Acne scars, Nevus of Ota, blue nevus, black nevus.
